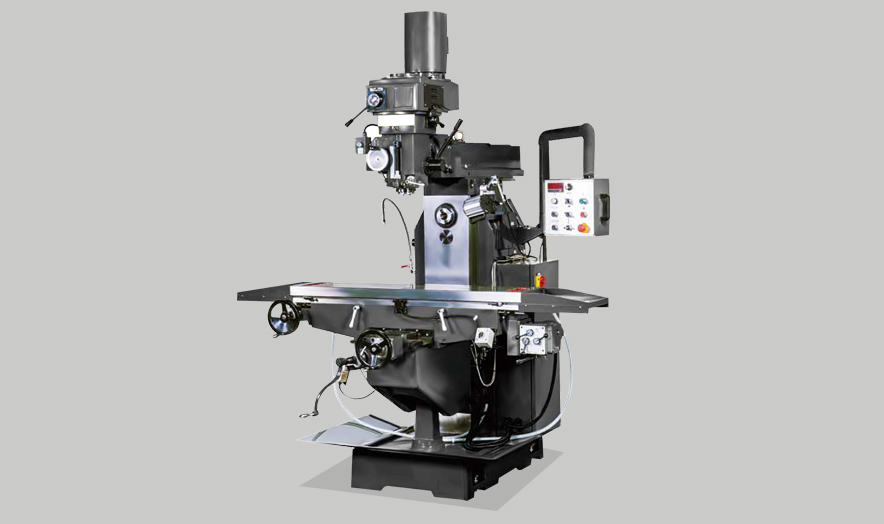

Longitudinal travel(M./A.)

   1000 mm (39.37")

   Cross travel (M./A.)

   400 mm (15.79")

   Vertical travel (M./A.)

   440 mm (17.32")

   Sildeway X / Y / Z

   △ / □ / □

   Quill travel

   140 mm ( 5.51" )

   Overarm travel

   700 mm (27.56")

   Quill swivel

   360 degree

   Quill swivel (R&L)

   ±45 degree

   Quill swivel (F&B)

   Fixed

   Dist. From SPindle nose to table

   100 - 540 mm (3.93" - 21.25")

   Spindle centerline to column

   180 - 880 mm (7.09" - 34.65")

   Dimension

   1370 x 300 mm (54" x 12")

   T-slots (Width x No. x Pitch)

   16 x 3 x 70 mm (0.63"x3x2.75")

   Max. table load

300 kg

   Milling head

   10 Steps

   Inverter

   Speed

   75-3500

   60-2870

   55-3600

   Quill Diameter

   110mm

   Vertical feeds

   0.04 / 0.08 / 0.15 mm / rev

   Taper

   NT40

   Horzontl spindle speed

   60Hz : 92-1614 / 50Hz : 73-1288 (9 Steps)

   Horzontl Taper

   NT40

   Main spindle

   5 HP

   Horizontal spindle

   5 HP

   X-axis traverse

   1/2 HP

   Y-axis traverse

   X

   Z-axis traverse

   1/2 HP

   X-axis speed

   30-1300 (1.2"-51.1")(9 Steps)

   Y-axis speed

  X

   Z-axis speed

   345 mm/min (13.58")

   Space (L x W x H)

   2270 x 3100 x 2520 (90"x122"x100")

   Packing Dimension (L x W x H)

   1800 x 2200 x 2100 (71"x 87" x 83" )

   Net Weight

   2250 kg

   Gross Weight

   2450 kg

   Shipment Advice

   2.0 # (20"GP) x 4
